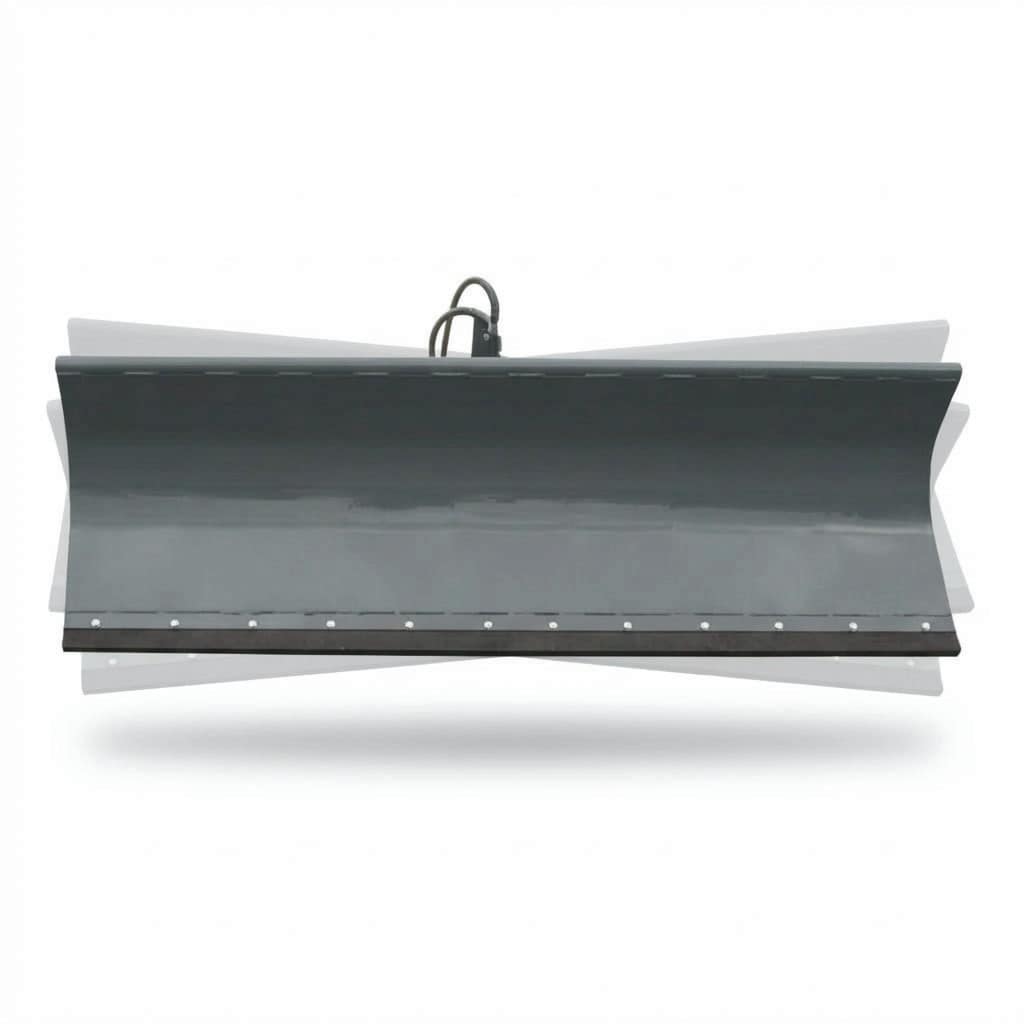

Snow Blade
Heavy duty snow clearing attachment with adjustable swing and tilt angles. Designed for efficient snow removal on roads, driveways, and industrial spaces.
CE Marked
Images
Technical Specifications
| Model | Tractor HP | Blade Width (Overall width) | L/R Swing Angle | Mounting |
|---|---|---|---|---|
| TR150-SN | 20–35 | 1500 mm | Mechanical Type: 0° / ±16° / ±30° (Standard) Hydraulic Type: −26° to +26° (Option) | 3 Point Rear |
| TR165-SN | 30–50 | 1650 mm | ||
| TR180-SN | 45–70 | 1800 mm | ||
| TR210-SN | 70–90 | 2100 mm | ||
| TR230-SN | 80–100 | 2300 mm | ||
| TR260-SN | 90–130 | 2600 mm | ||
| DH150-SN | 20–35 | 1500 mm | Front Loader Euro Quick Attach (Standard) Custom mount on request | |
| DH165-SN | 30–50 | 1650 mm | ||
| DH180-SN | 45–70 | 1800 mm | ||
| DH210-SN | 70–90 | 2100 mm | ||
| DH230-SN | 80–100 | 2300 mm | ||
| DH260-SN | 90–130 | 2600 mm | ||
|
Hydraulic Control System: Share Tractor Hydraulic Valves (Standard) One-way valve / Mechanical Swing Double-way Valve / Hydraulic Swing (Option) | ||||
Description:
The Snow Blade is engineered for snow clearing and winter maintenance operations. Available with mechanical or hydraulic swing configurations, the blade is designed for efficient snow pushing, surface clearing, and winter road maintenance performance.
Suitable for tractors from 20–90 HP.
Applications:
- Snow removal operations
- Road and surface clearing
- Industrial property maintenance
- Municipal winter operations
- Estate and utility maintenance
Features:
- Mechanical swing configuration
- Hydraulic swing option
- Front linkage mounting
- Euro quick attach compatibility
- Reinforced blade construction
