Low Dump Flail Mower Collector
Efficient grass cutting and debris collection in one pass, designed for compact and mid range tractors. Ideal for maintaining parks, orchards, and agricultural fields with clean, professional results.
CE Marked

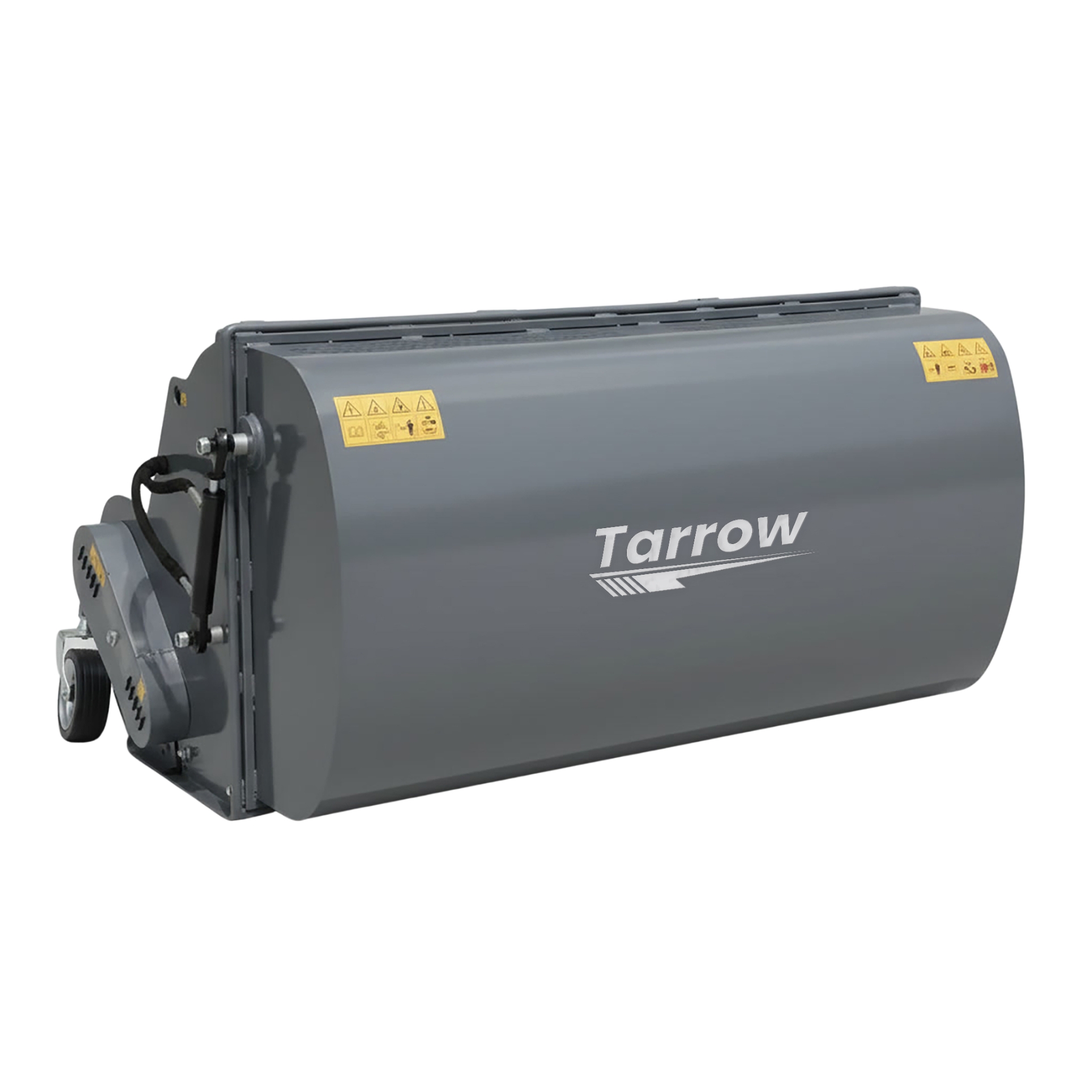

Product Image
Product Specification
| Model | Hydraulic Collector Type | Working Width | Hammer Blades | Linkage | PTO | Capacity Baskets (m³) | Tractor HP | Weight | A | B | C |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TRCL-90 | Low Dump | 900 mm | 20 | 3 Point Rear | 540 r/min | 0.4 | 25–60 | 298 kg | 1430 mm | 1035 mm | 1025 mm |
| TRCL-105 | Low Dump | 1050 mm | 24 | 3 Point Rear | 0.55 | 25–60 | 322 kg | 1185 mm | |||
| TRCL-120 | Low Dump | 1200 mm | 28 | 3 Point Rear | 0.7 | 35–70 | 352 kg | 1335 mm | |||
| TRCL-160 | Low Dump | 1600 mm | 36 | 3 Point Rear | 0.85 | 50–70 | 422 kg | 1735 mm |
Description:
The Low Dump Flail Mower Collector is designed for efficient mowing and integrated grass collection operations.
The compact low-dump collection system enables smooth material flow, clean surface finishing, and practical unloading performance for regular maintenance applications.
Suitable for 25–70 HP tractors.
Applications:
- Municipal mowing
- Sports grounds maintenance
- Orchard maintenance
- Estate management
- Commercial turf maintenance
- Smallholdings and private landowners
Features:
• Integrated grass collection system
• Compact low-dump design
• Heavy-duty hammer flails
• PTO-driven operation
• Smooth material flow and collection
• PTO shaft included
